Name: Abound LR E-Bike
Brand: AVENTON
SKU: AV_AB_LR_SAGE
Price: 3079.0 CAD
Availability: InStock

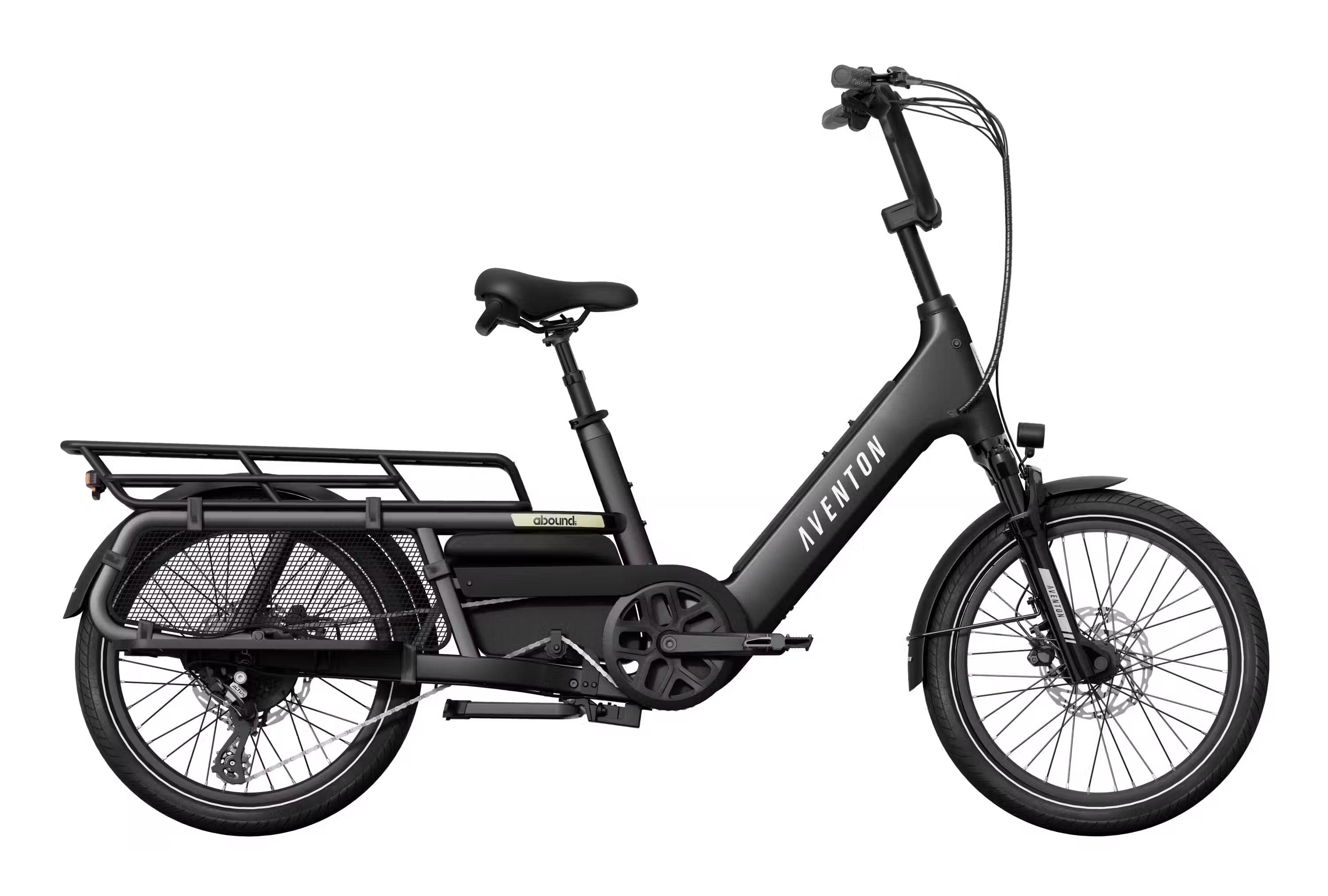

Abound LR E-Bike

$3,079.00 CAD

Free Shipping

2 Year Warranty

Official Authorization

Lowest price guaranteed, we price match all Canadian sellers

Size:

Aventon Ebike Size Guide-2024

Model	Rider Height	Recommended Size
Ramblas	Small: 5'1" - 5'5" Medium: 5'5" - 5'9" Large: 5'10" - 6'2" Extra Large: 6'2" - 6'5"	Small Medium Large Extra Large
Aventure	5'1"-5'9" 5'7"-5'11" 5'11"-6'4"	S M L
Aventure Step-Through	4'11"-5'7" 5'8"-6'2"	S/M M/L
Next-Gen Pace 500	5'1"-5'7" 5'7"-5'11"	R L
Next-Gen Pace 500 Step-Through	4'11"-5'8" 5'8"-6'1"	S/M M/L
Next-Gen Pace 350	5'1"-5'11" 5'11"-6'4"	R L
Next-Gen Pace 350 Step-Through	5'1"-5'11" 5'11"-6'4"	S/M M/L
Pace 500 and 350	5'1"-5'7" 5'7"-5'11" 5'11"-6'4"	S M L
Pace 500 Step-Through and 350 Step-Through	4'11"-5'8" 5'8"-6'1"	S M
Level.2	5'1"-5'11" 5'11"-6'4"	R L
Level.2 Step-Through	4'11"-5'7" 5'8"-6'2"	S/M M/L
Level	5'1"-5'7" 5'7"-5'11" 5'11"-6'4"	S M L
Level Step-Through	4'11"-5'7" 5'8"-6'2"	S/M M/L
Soltera 1/7	5'1"-5'7" 5'7"-6'4"	R L
Soltera 1/7 Step-Through	4'11"-5'7" 5'7"-6'1"	S/M M/L
Sinch	5'0"-6'3"	One size fits most adults and teens
Sinch Step-Through	4'11"-6'3"	One size fits most adults and teens

These guidelines are based on riders with average torso and leg lengths, plus our experience fitting thousands of riders. For additional information about bicycle fit, please see the detailed geometry charts and drawings found on each product page.

One Size 4'11” - 6'3”

Color:

Sage

Variant

Quantity:

Bundle Sale

ETA: We will ship it out as soon as it is in stock.

Battery

36V 20Ah

Top Speed

32 KM/H

Power

750 W

Max Range

Up to 96 KM

Weight

88 LBS

Weight Capacity

440 LBS

Description

Size & Fit

Technical Specifications

Description

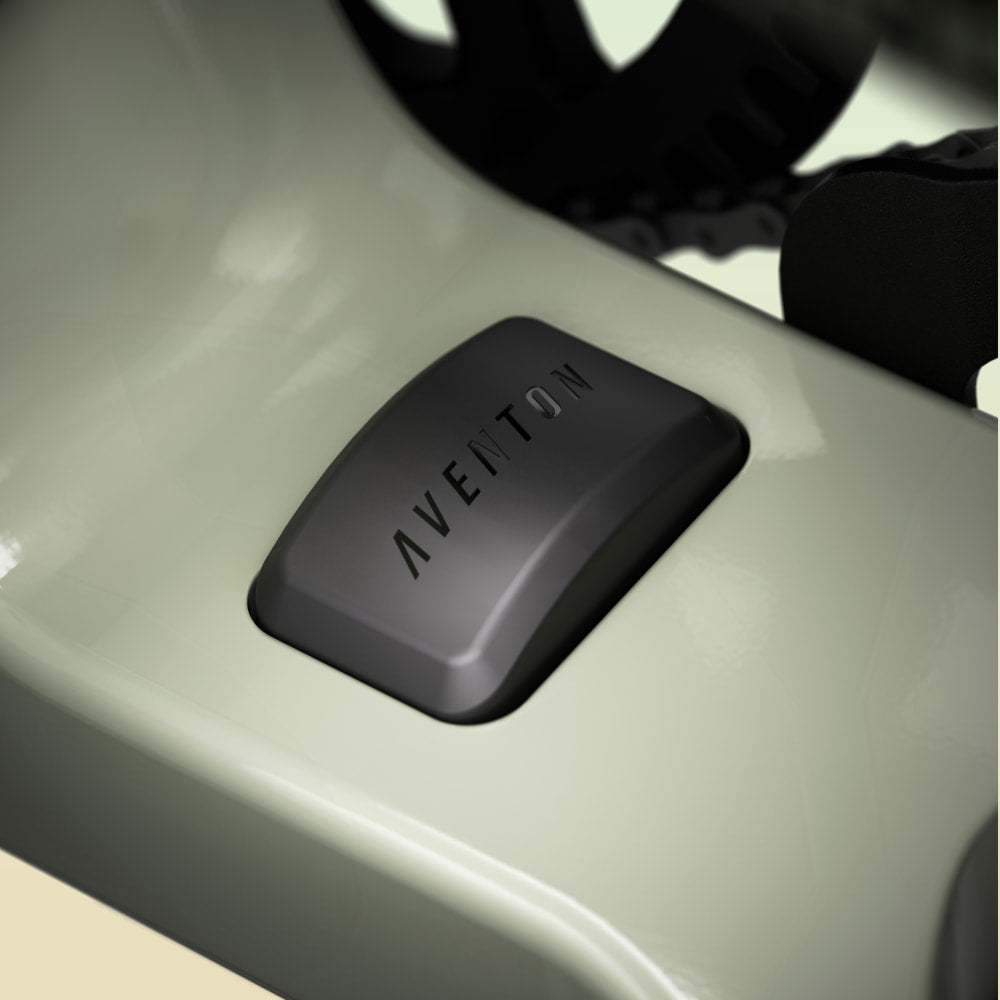

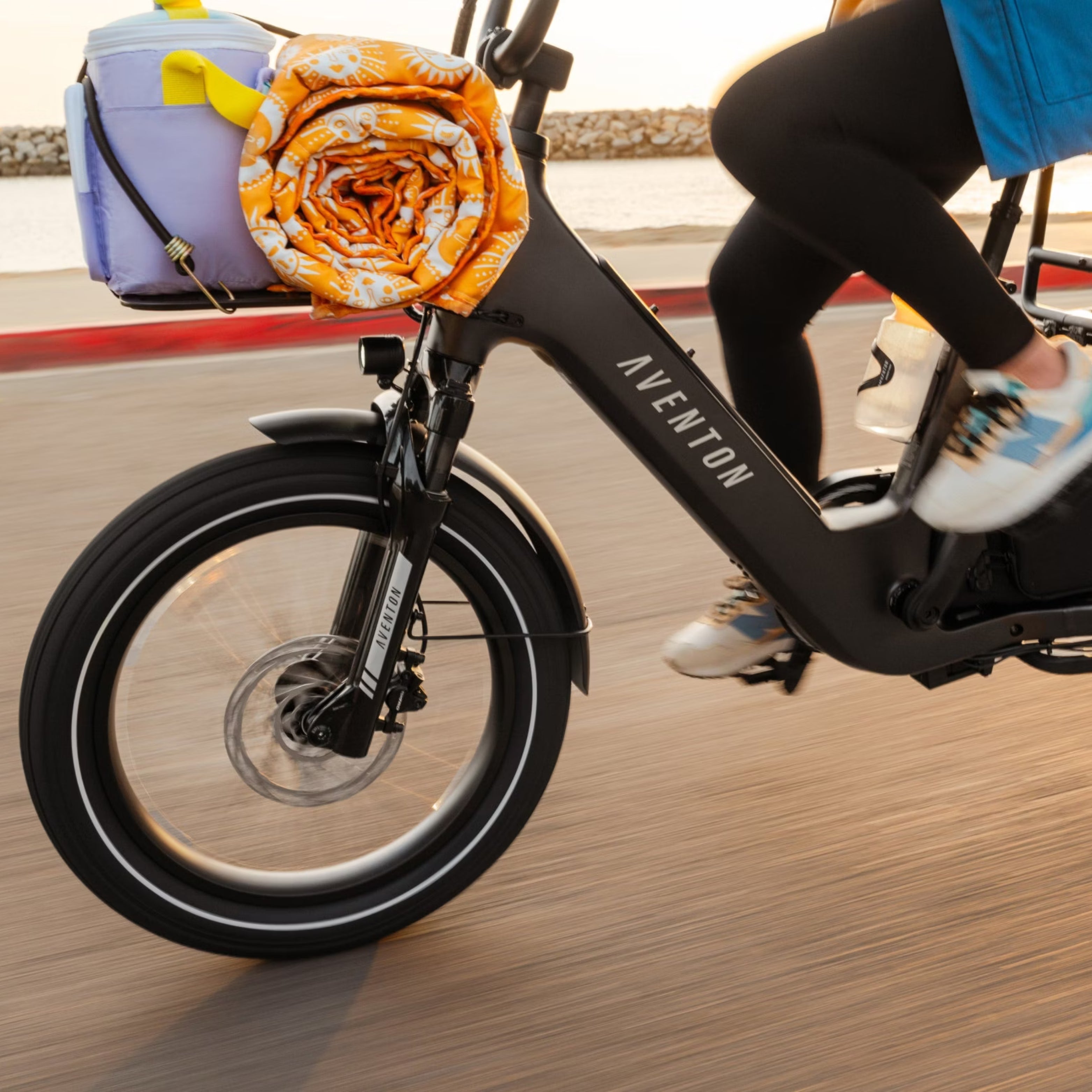

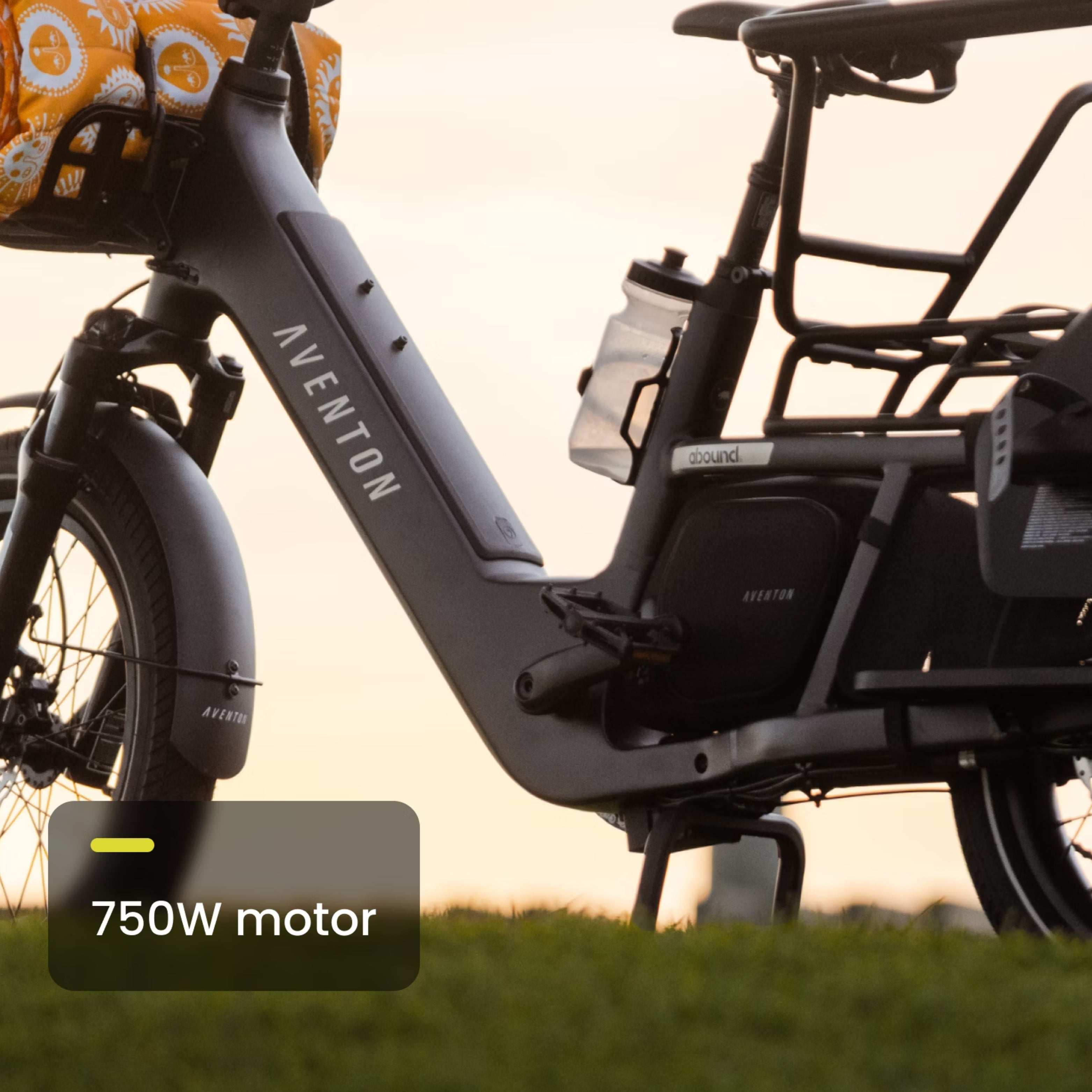

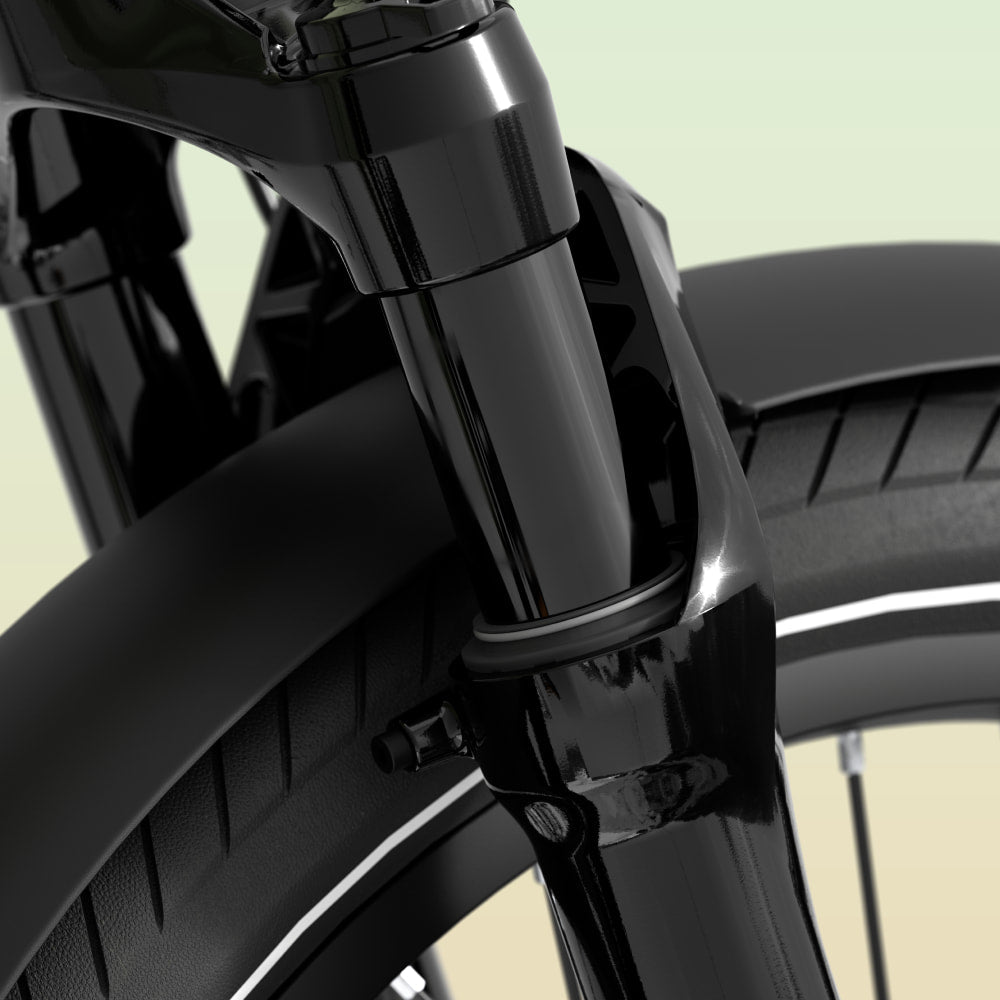

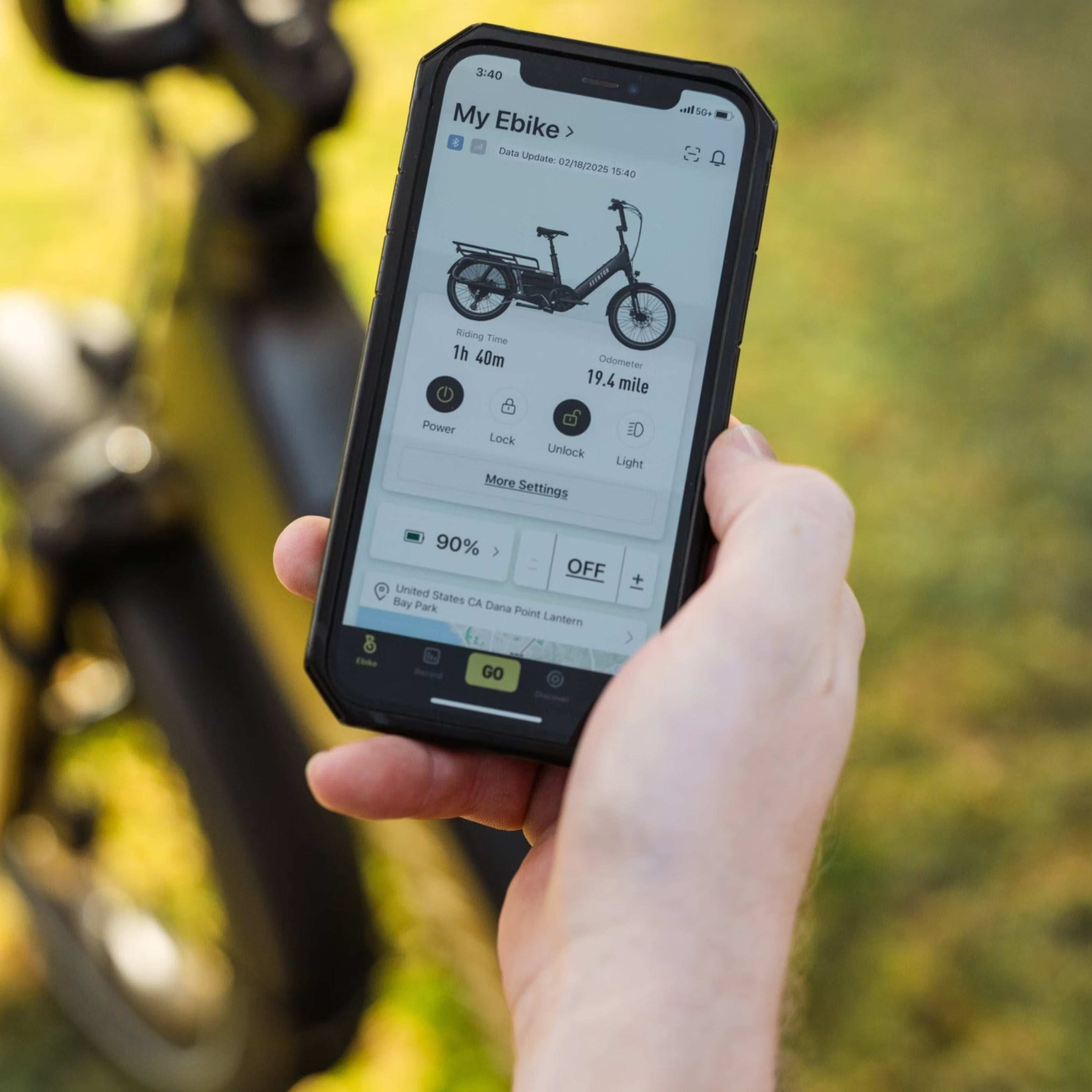

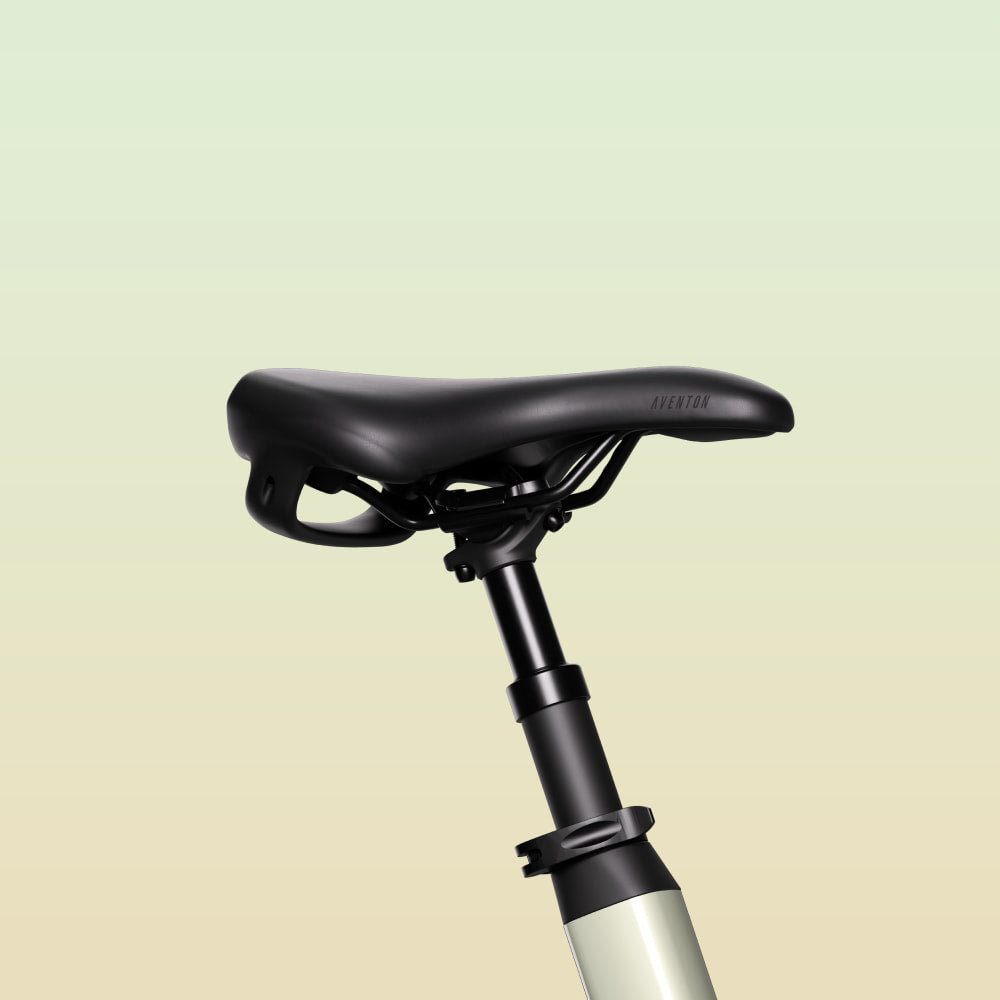

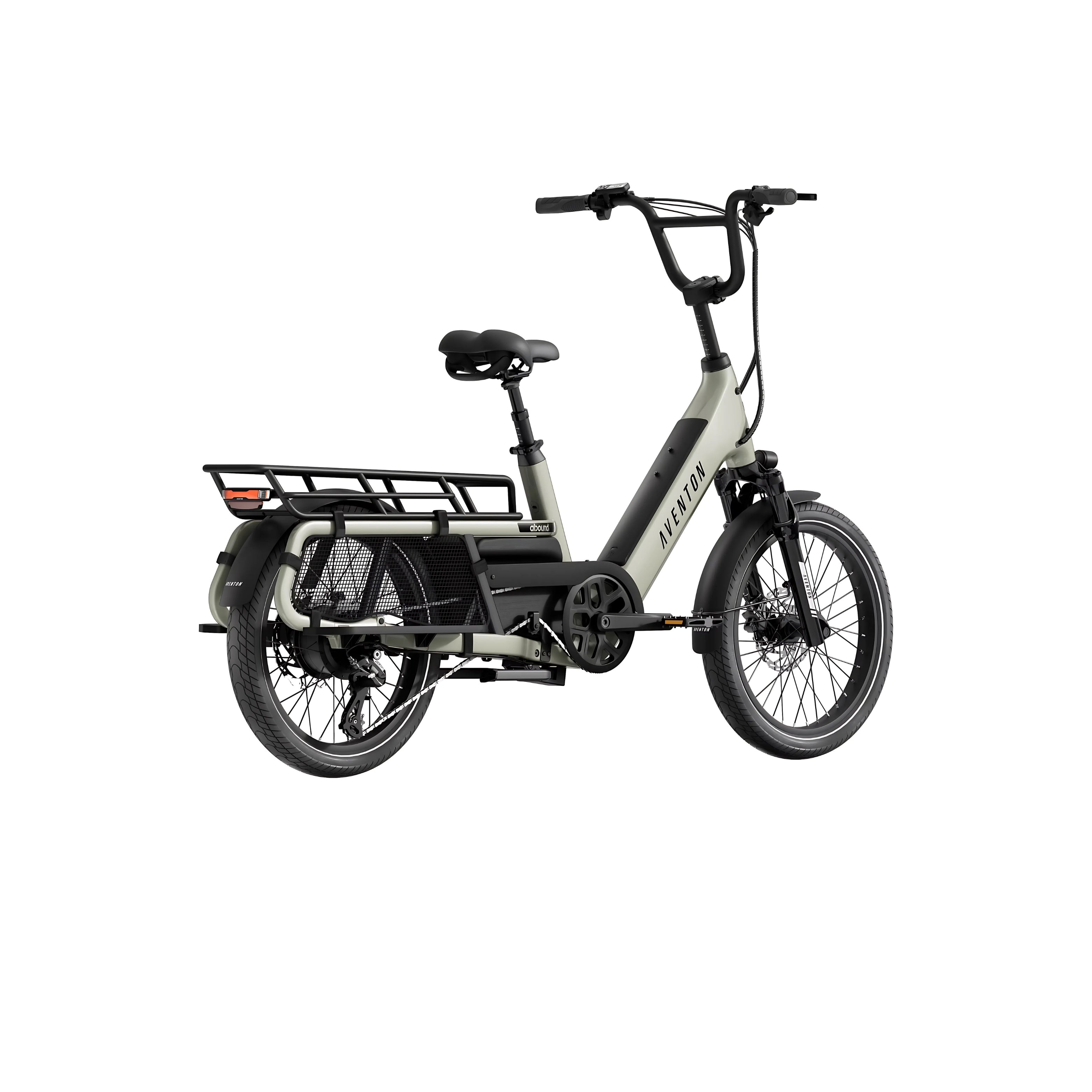

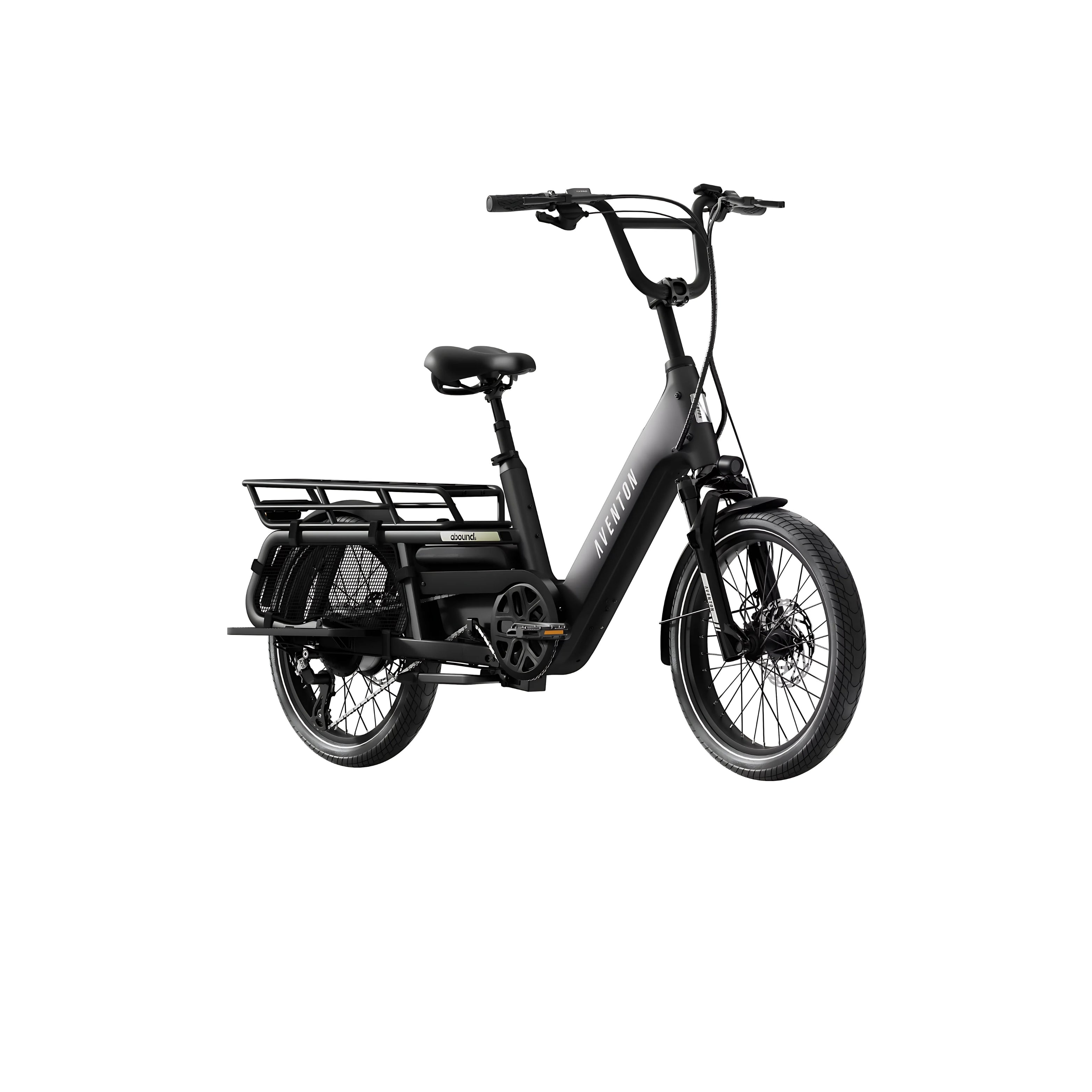

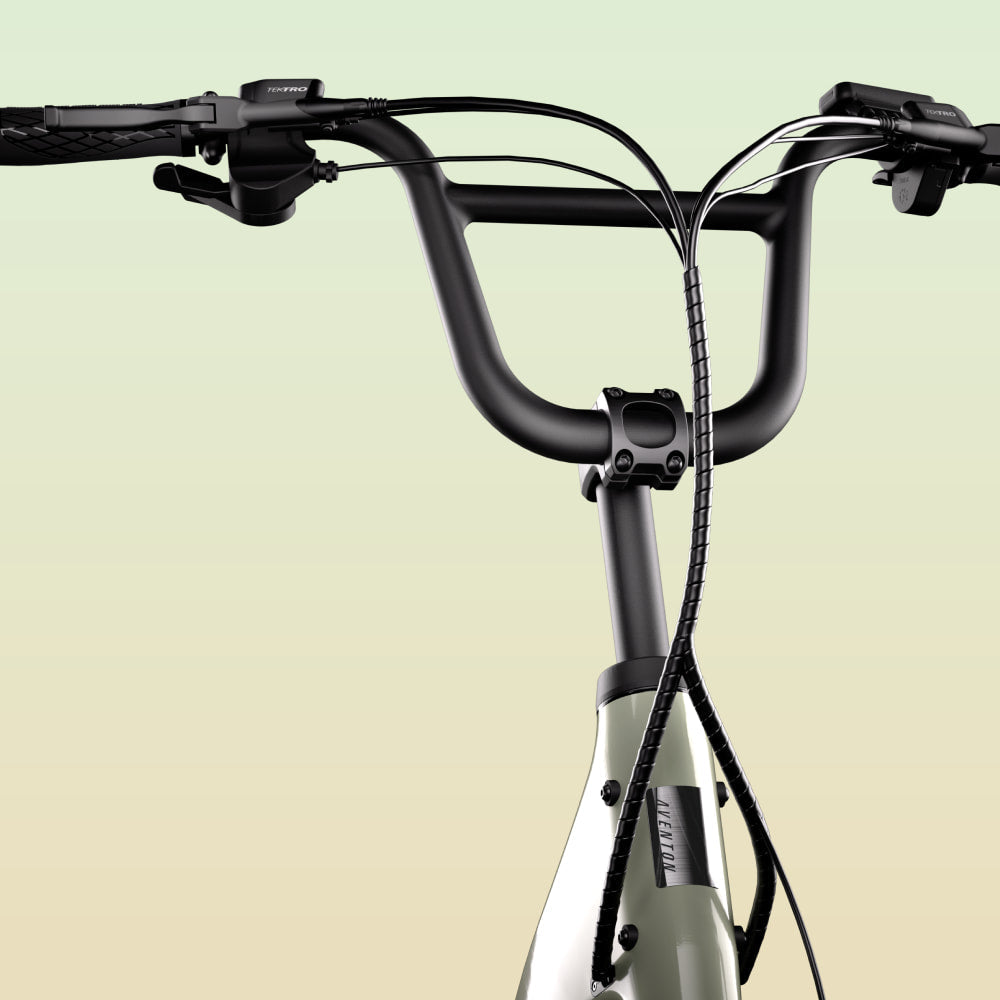

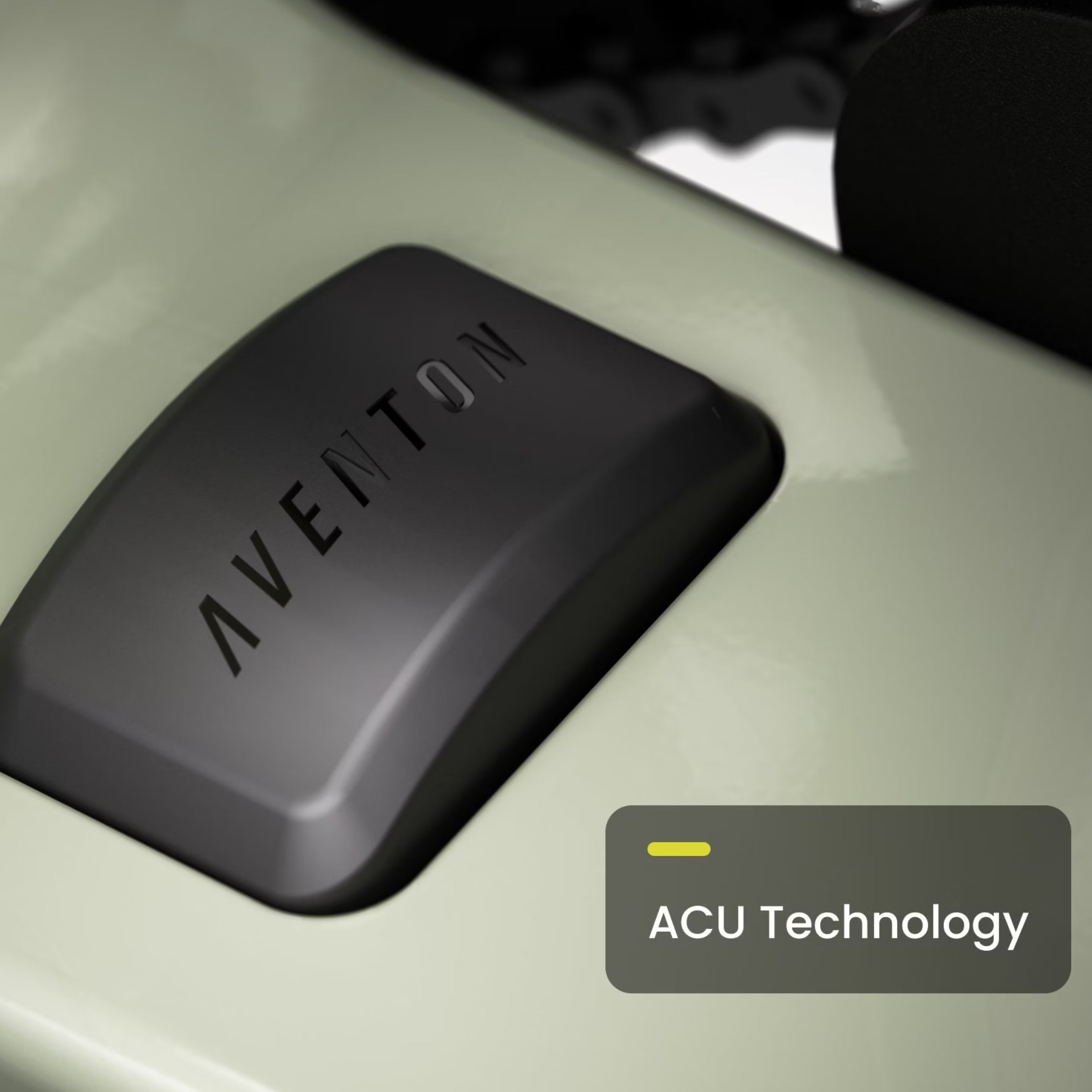

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

Size & Fit

[{"title":"Abound LR Ebike is available in 1 sizes to suit most adults. From 4'11\" - 6'3\"."},{"image":"https://cdn.shopify.com/s/files/1/0291/9655/0204/files/Abound_LR_Geo_Chart_Bike_Only.png?v=1742573462"},{"Frame Size":"A - Seat Tube Length","One size fits most":"380mm (15.0\")"},{"Frame Size":"B - Top Tube Length Horizontal","One size fits most":"610mm (24.0\")"},{"Frame Size":"C - Bottom Bracket Drop","One size fits most":"30mm (1.2\")"},{"Frame Size":"D - Head Tube Length","One size fits most":"210mm (8.3\")"},{"Frame Size":"E - Head Tube Angle","One size fits most":"69°"},{"Frame Size":"F - Seat Tube Angle","One size fits most":"70°"},{"Frame Size":"G - Rear Chainstay Length","One size fits most":"660mm (26.0\")"},{"Frame Size":"H - Front Wheel Center","One size fits most":"673mm (26.5\")"},{"Frame Size":"I - Wheelbase","One size fits most":"1332mm (52.4\")"},{"Frame Size":"J - Reach","One size fits most":"420mm (16.5\")"},{"Frame Size":"K - Stack Height","One size fits most":"420mm (16.5\")"},{"Frame Size":"L - Fork Length","One size fits most":"394.5mm (15.5\")"},{"Frame Size":"M - Fork Offset","One size fits most":"38mm (1.5\")"},{"Frame Size":"N - Trail","One size fits most":"63mm (2.5\")"},{"Frame Size":"Wheel Size in Inches","One size fits most":"20\""},{"Frame Size":"Rider Height","One size fits most":"4'11\" - 6'3\""}]

Technical Specifications

{"group_1":"GENERAL INFO","Model":"Abound LR Ebike","Weight":"88 lbs","Total Weight Limit":"440 lbs","Rider Height":"4'11\" - 6'3\"","Class":"Class 2 Ebike","Water Resistance":"IPX4","Ideal Use":"Cargo","Range":"Up to 96 km","Battery Safety Certifications":"Certified to UL 2271","Safety Certifications":"UL and TUV Safety Certified  UL 2849","group_2":"FRAMESET","Frame":"Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery","Fork":"Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions","Rear Spacing":"175mm","Fork Spacing":"110mm","group_3":"WHEELSET","Front Wheel":"Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve","Rear Wheel":"Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve","Tires":"20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls","group_4":"EBIKE SYSTEM","Motor":"Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)","Motor Torque":"80Nm","Display":"Aventon BC147","Battery":"Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells","Battery Weight":"8.7lbs","Controller":"36V/33A","Throttle":"Aventon LH Handlebar Mounted","Sensors":"Double Sided Bottom Bracket Torque Sensor","Charger":"36V Output: 42V/ 4A","Charging time from 0% to 100%":"5 hours","Lights":"Front and Rear Lights Integrated w/ Turn Signals","group_5":"BRAKES","Front Brake":"Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire","Rear Brake":"Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire","Front Brake Rotor":"180mm 6 bolt","Rear Brake Rotor":"203mm 6-bolt","group_6":"DRIVETRAIN","Rear Derailleur":"Shimano Altus RD-M310 8 Speed","Shifter":"Shimano 8 Speed Trigger SL-M315-8R","Chain":"7/8 speed 154L","Cassette":"12-32T / 8 Speed Shimano CS HG200-8","Chainring":"52 tooth","Chainring BCD":"104","Crank":"3pc, 165mm crank arm","Bottom Bracket":"Square Taper, Sealed, Dual-Sided Torque Sensor","Pedals":"9/16\" Composite Platform","group_7":"COCKPIT","Saddle":"Aventon Saddle w/ grab handle by Selle Royal","Seatpost":"Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel","Seatpost Clamp":"34.9mm","Handlebars":"BMX Style Aluminum 31.8mm, 720mm","Grips":"Aventon Ergonomic Comfort lock on grips","Headset":"H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs","group_8":"INCLUDED ACCESSORIES","Fenders":"Included","Rear Rack":"Included","Rear Rack Weight Limit":"143 lbs","Technical Overview":"The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*"}
