EZbike Canada : Aventon Level 3 Step-Through Commuter E-Bike

Battery

36V 20Ah

Top Speed

32 KM/H

Power

500 W

Max Range

Up to 112 KM

Weight

62 LBS

Weight Capacity

300 LBS

Description

Size & Fit

Technical Specifications

AVENTON

Level 3 Step-Through Commuter E-Bike

Name: Level 3 Step-Through Commuter E-Bike
Brand: AVENTON
SKU: AV_LEVEL_3_SAND_R
Price: 2939.0 CAD
Availability: InStock

$2,939.00 CAD

Free Shipping

2 Year Warranty

Official Authorization

Lowest price guaranteed, we price match all Canadian sellers

Size:

Aventon Ebike Size Guide-2024

Model	Rider Height	Recommended Size
Ramblas	Small: 5'1" - 5'5" Medium: 5'5" - 5'9" Large: 5'10" - 6'2" Extra Large: 6'2" - 6'5"	Small Medium Large Extra Large
Aventure	5'1"-5'9" 5'7"-5'11" 5'11"-6'4"	S M L
Aventure Step-Through	4'11"-5'7" 5'8"-6'2"	S/M M/L
Next-Gen Pace 500	5'1"-5'7" 5'7"-5'11"	R L
Next-Gen Pace 500 Step-Through	4'11"-5'8" 5'8"-6'1"	S/M M/L
Next-Gen Pace 350	5'1"-5'11" 5'11"-6'4"	R L
Next-Gen Pace 350 Step-Through	5'1"-5'11" 5'11"-6'4"	S/M M/L
Pace 500 and 350	5'1"-5'7" 5'7"-5'11" 5'11"-6'4"	S M L
Pace 500 Step-Through and 350 Step-Through	4'11"-5'8" 5'8"-6'1"	S M
Level.2	5'1"-5'11" 5'11"-6'4"	R L
Level.2 Step-Through	4'11"-5'7" 5'8"-6'2"	S/M M/L
Level	5'1"-5'7" 5'7"-5'11" 5'11"-6'4"	S M L
Level Step-Through	4'11"-5'7" 5'8"-6'2"	S/M M/L
Soltera 1/7	5'1"-5'7" 5'7"-6'4"	R L
Soltera 1/7 Step-Through	4'11"-5'7" 5'7"-6'1"	S/M M/L
Sinch	5'0"-6'3"	One size fits most adults and teens
Sinch Step-Through	4'11"-6'3"	One size fits most adults and teens

These guidelines are based on riders with average torso and leg lengths, plus our experience fitting thousands of riders. For additional information about bicycle fit, please see the detailed geometry charts and drawings found on each product page.

Regular: 4'11” - 5'7” Large: 5'7” - 6'1”

Color:

Sandstone

Variant

Quantity:

Buy Pre-Owned

ETA: We will ship it out as soon as it is in stock.

Contact us for help

Battery

36V 20Ah

Top Speed

32 KM/H

Power

500 W

Max Range

Up to 112 KM

Weight

62 LBS

Weight Capacity

300 LBS

Description

Size & Fit

Technical Specifications

Description

Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 16 km of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3

Size & Fit

[{"title":"Level 3 Step Through Commuter Ebike is available in 2 sizes to suit most adults.","Regular":"4'11\" - 5'7\"","Large":"5'7\" - 6'1\""},{"image":"https://cdn.shopify.com/s/files/1/0291/9655/0204/files/Level_3_Geometry_Chart_Step_Thru_Image_Only.png?v=1740521989"},{"Frame Size":"A - Seat Tube Length","Regular":"400mm (15.7\")","Large":"480mm (18.9\")"},{"Frame Size":"B - Top Tube Length Horizontal","Regular":"607mm (23.9\")","Large":"634mm (25\")"},{"Frame Size":"C - Bottom Bracket Drop","Regular":"50mm (1.97\")","Large":"50mm (1.97\")"},{"Frame Size":"D - Head Tube Length","Regular":"130mm (5.1\")","Large":"130mm (5.1\")"},{"Frame Size":"E - Head Tube Angle","Regular":"70°","Large":"70°"},{"Frame Size":"F - Seat Tube Angle","Regular":"74°","Large":"74°"},{"Frame Size":"G - Rear Chainstay Length","Regular":"480mm (18.9\")","Large":"480mm (18.9\")"},{"Frame Size":"H - Front Wheel Center","Regular":"675mm (26.6\")","Large":"701mm (27.6\")"},{"Frame Size":"I - Wheelbase","Regular":"1150mm (45.3\")","Large":"1176.8mm (46.3\")"},{"Frame Size":"J - Reach","Regular":"423mm (16.7\")","Large":"450mm (17.7\")"},{"Frame Size":"K - Stack Height","Regular":"610mm (24.0\")","Large":"610mm (24.0\")"},{"Frame Size":"L - Fork Length","Regular":"480mm (18.9\")","Large":"480mm (18.9\")"},{"Frame Size":"M - Fork Offset","Regular":"43mm (1.7\")","Large":"43mm (1.7\")"},{"Frame Size":"N - Trail","Regular":"81mm (3.2\")","Large":"81mm (3.2\")"},{"Frame Size":"Wheel Size in Inches","Regular":"27.5\"","Large":"27.5\""},{"Frame Size":"Stand Over Height","Regular":"442mm (17.4\")","Large":"442mm (17.4\")"},{"Frame Size":"Rider Height (Range)","Regular":"150 - 170 cm (4'11 - 5'7\")","Large":"170cm - 185 cm (5'7 - 6'1\")"}]

Technical Specifications

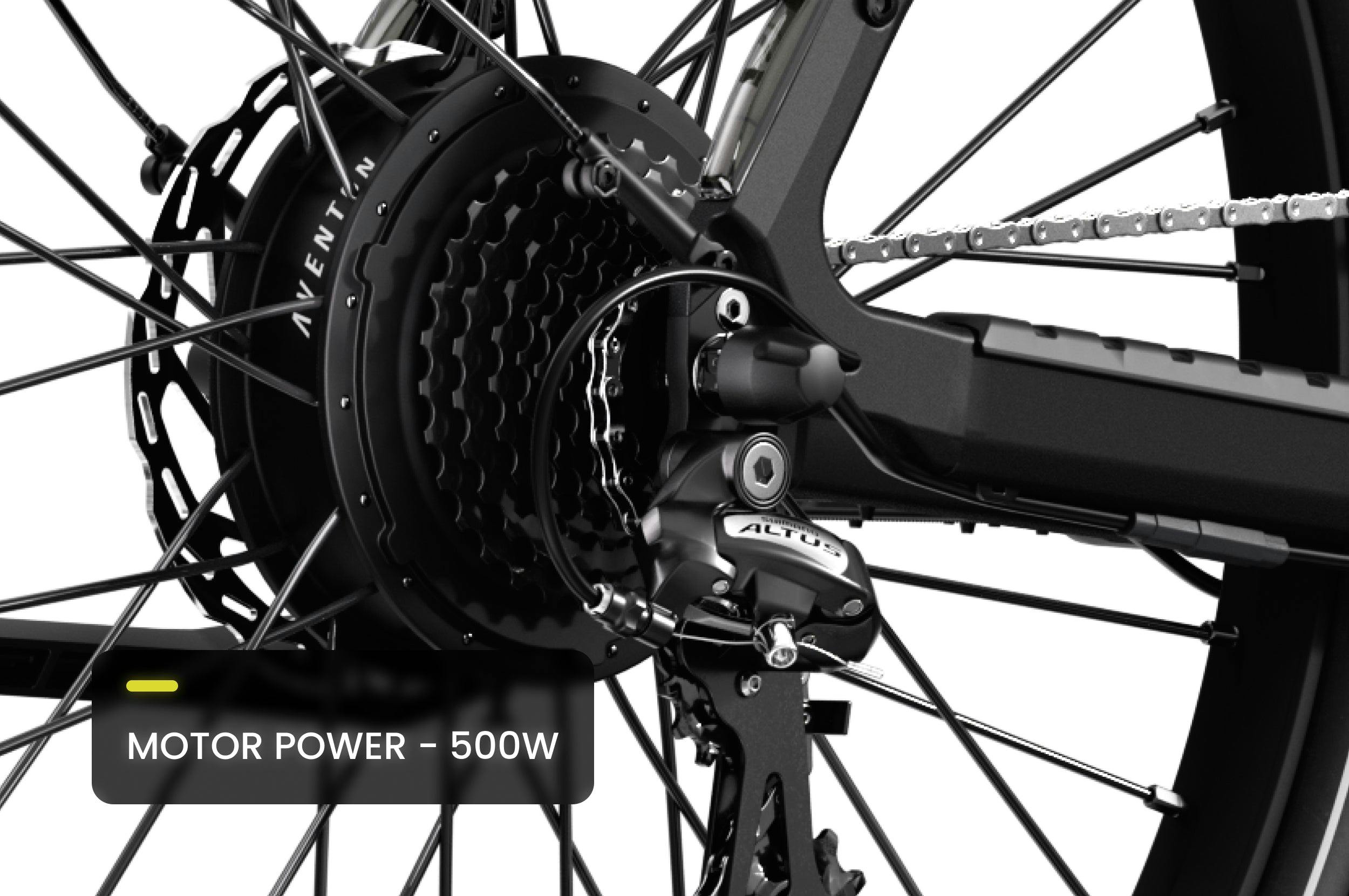

{"group_1":"GENERAL INFO","Model":"Level 3 Step Through Commuter Ebike","Total Weight Limit":"300 lbs","Box Size":"61\"x13\"x34\"","Rider Height":"4'11\" - 6'1\"","Class":"Class 2 Ebike","Water Resistance":"IPX4","Range":"Up to 112 km","group_2":"FRAMESET","Frame":"6061 Aluminum, Gravity Cast Front Triangle","Fork":"Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset","Rear Spacing":"142mm","Fork Spacing":"110mm","group_3":"WHEELSET","Front Wheel":"27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black","Rear Wheel":"27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black","Tires":"Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20","group_4":"EBIKE SYSTEM","Motor":"36V, 500W (sustained), 864W (peak)","Motor Torque":"60Nm","Display":"Aventon BC280","Battery":"Removable Internal Lithium-ion. 36V, 20Ah, 708Wh, LG 21700 cells","Battery Weight":"8.7lbs","Controller":"36V, 24A","Throttle":"Aventon LH Handlebar Mounted","Sensors":"Double Sided Bottom Bracket Torque Sensor","Charger":"36V Output: 42V/ 4A","Charging time from 0% to 100%":"5 hours","Lights":"Front and rear lights integrated","group_5":"BRAKES","Front Brake":"Magura AT-2 Hydraulic disc brake","Rear Brake":"Magura AT-2 Hydraulic disc brake","Front Brake Rotor":"Magura MDR-A 180mm 6 Bolt Rotor","Rear Brake Rotor":"Magura MDR-A 180mm 6 Bolt Rotor","group_6":"DRIVETRAIN","Rear Derailleur":"Shimano Altus RD-M310","Shifter":"Shimano 8 Speed Trigger SL-M315-8R","Chain":"7/8 speed 120L","Cassette":"12-32T / 8 Speed Shimano CS HG200-8","Chainring":"48T","Chainring BCD":"104","Crankset":"3pc, 170mm crank arm","Bottom Bracket":"Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm","Pedals":"9/16\" Composite Platform","group_7":"COCKPIT","Saddle":"Aventon Saddle","Seatpost":"30.9mm Aventon Suspension Seatpost with 50mm travel","Seatpost Clamp":"34.9mm","Handlebars":"Aluminum 31.8mm, 680mm","Grips":"Aventon Lock on grips","Headset":"Sealed Bearing Headset","Rear Rack Weight Limit":"60lbs","Technical Overview":"The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb."}

Certified Pre-Owned refers to a high-quality, pre-owned product that has undergone a thorough inspection and refurbishment process to meet strict standards. In our case, this applies to both e-bikes and e-scooters. Each CPO vehicle has been carefully inspected by our qualified technicians to ensure it meets the same high performance and safety standards as a new model. Before a product is labeled as Certified Pre-Owned, it undergoes a detailed inspection covering every key component, including the motor, battery, brakes, tires, and frame. If any part of the product does not meet our rigorous criteria, it is either replaced or repaired with top-quality parts. After this process, the product is fully cleaned, recharged, and tested to ensure that it performs as well as a new product. When you buy a Certified Pre-Owned e-bike or e-scooter, you get the benefits of a like-new vehicle at a more affordable price. Plus, with our certification, you can rest assured knowing that your purchase is backed by a warranty, ensuring peace of mind and reliability.

Good to begin with, passed inspection

Fixed then tested, passed inspection

Mechanical

Status

AVENTON Level 3 Step-Through Commuter E-Bike

$2,939.00 CAD

Features

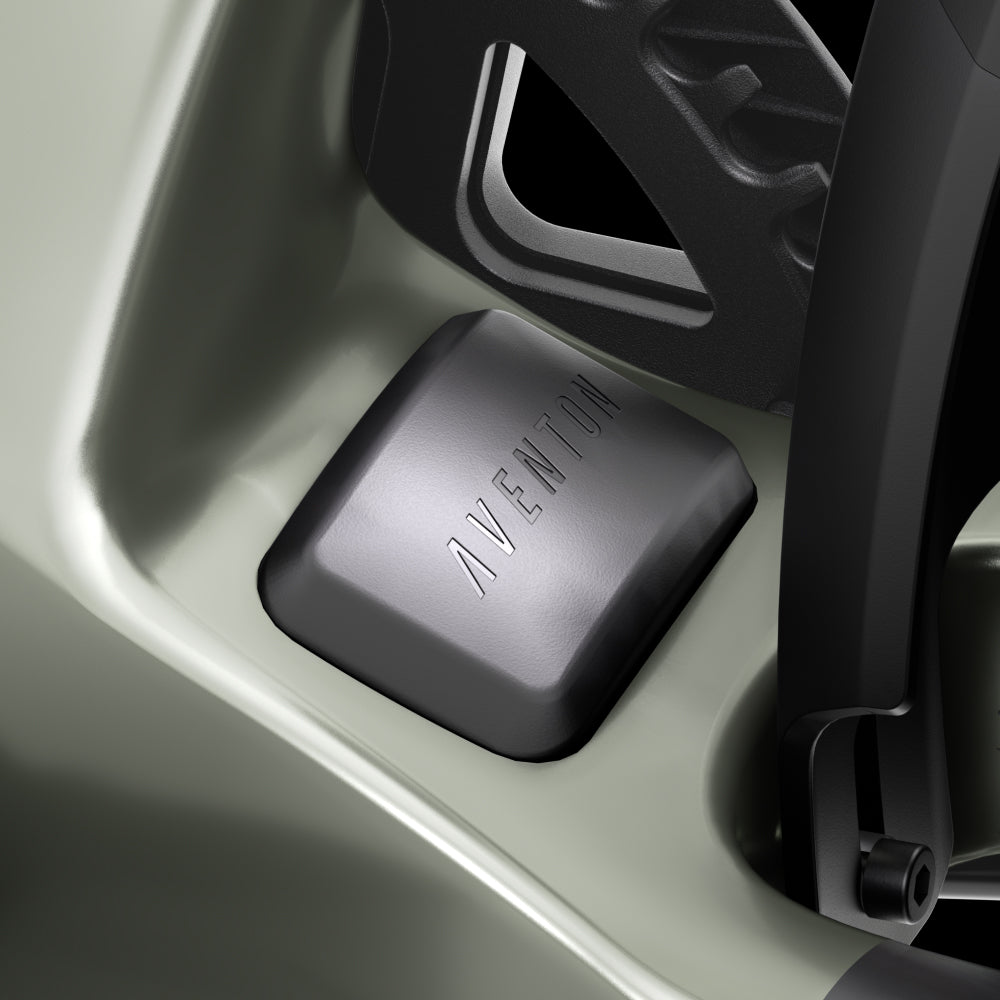

Enhanced Security meets Advanced Technology

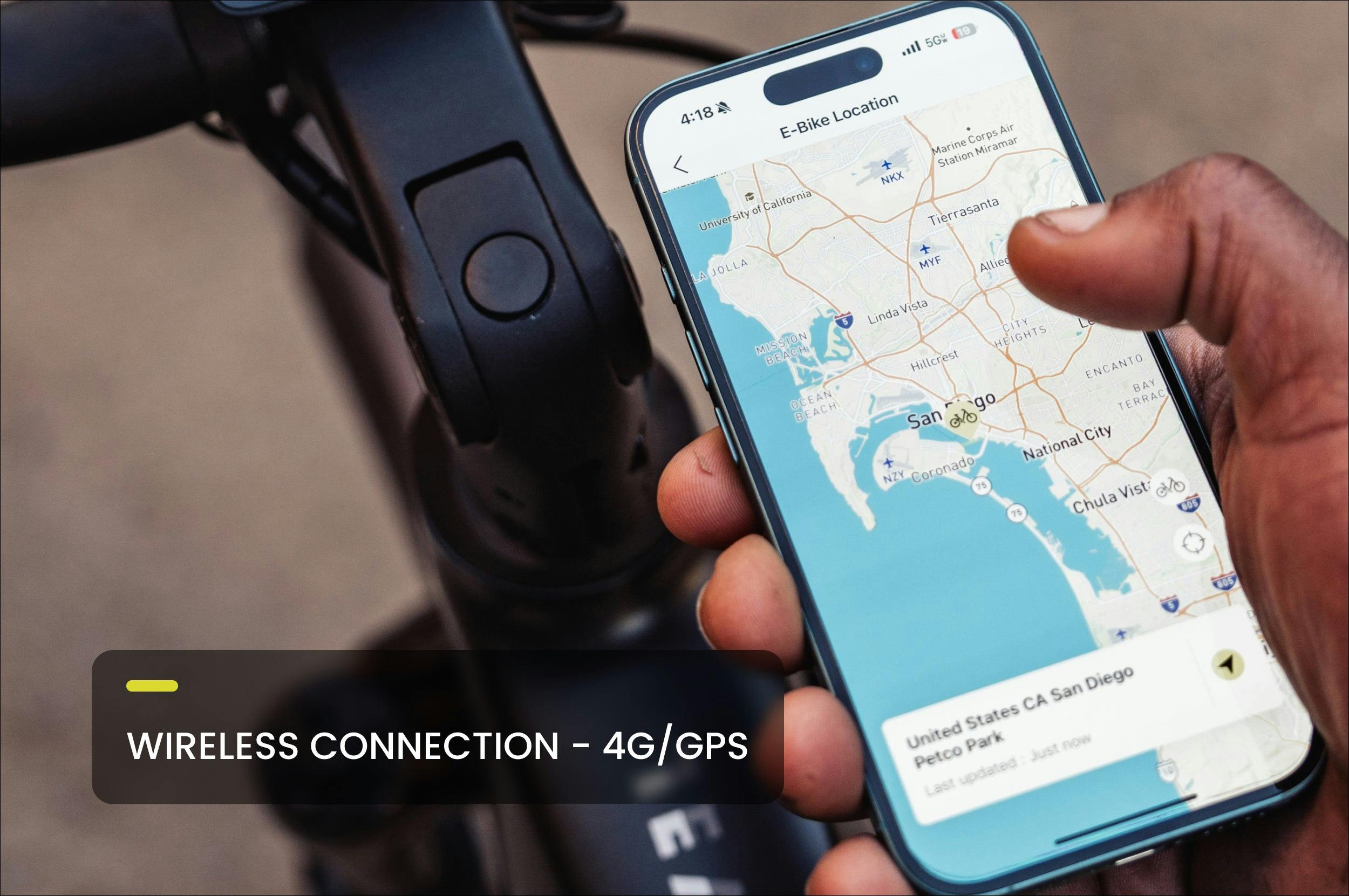

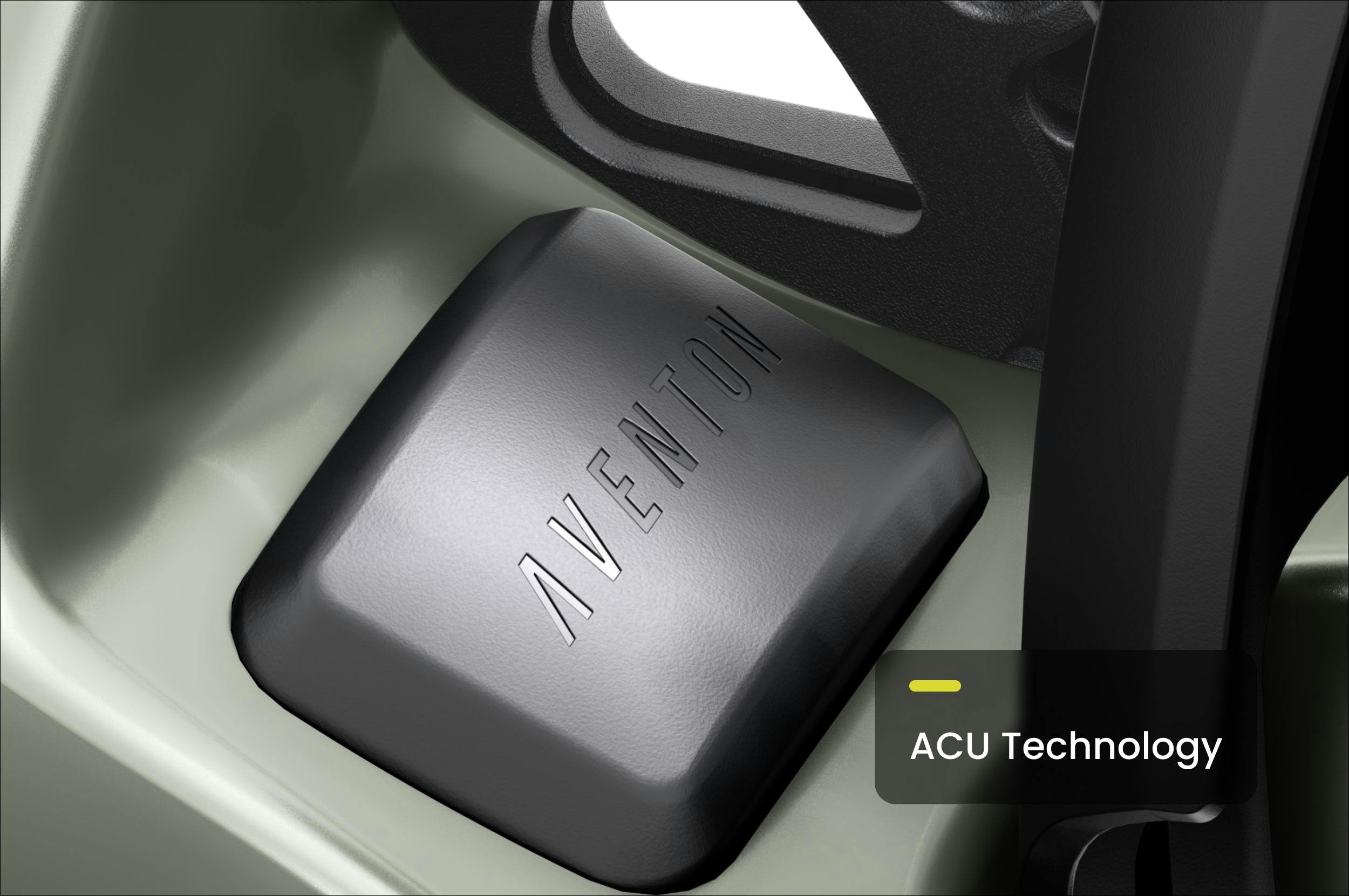

The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock, Geofencing and Passcode safeguards your Level 3 and deliver an ultimate peace of mind. When cruising, you can rely on GPS tracking, 4G connection and cloud synchronization to get your bike stats in real time.

Remote Lock and Geofencing

The smart remote locking functionality lets you immobilize your bike right from the Aventon app. And the Geofencing feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.

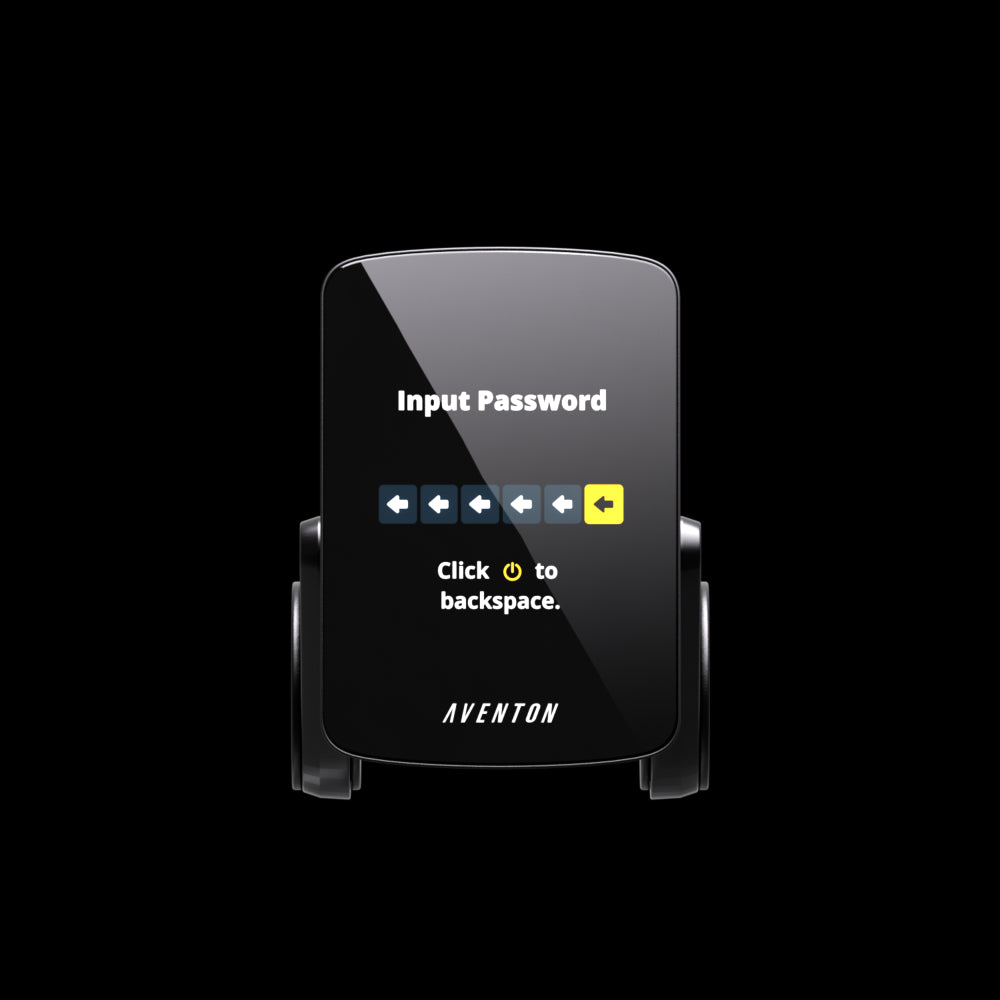

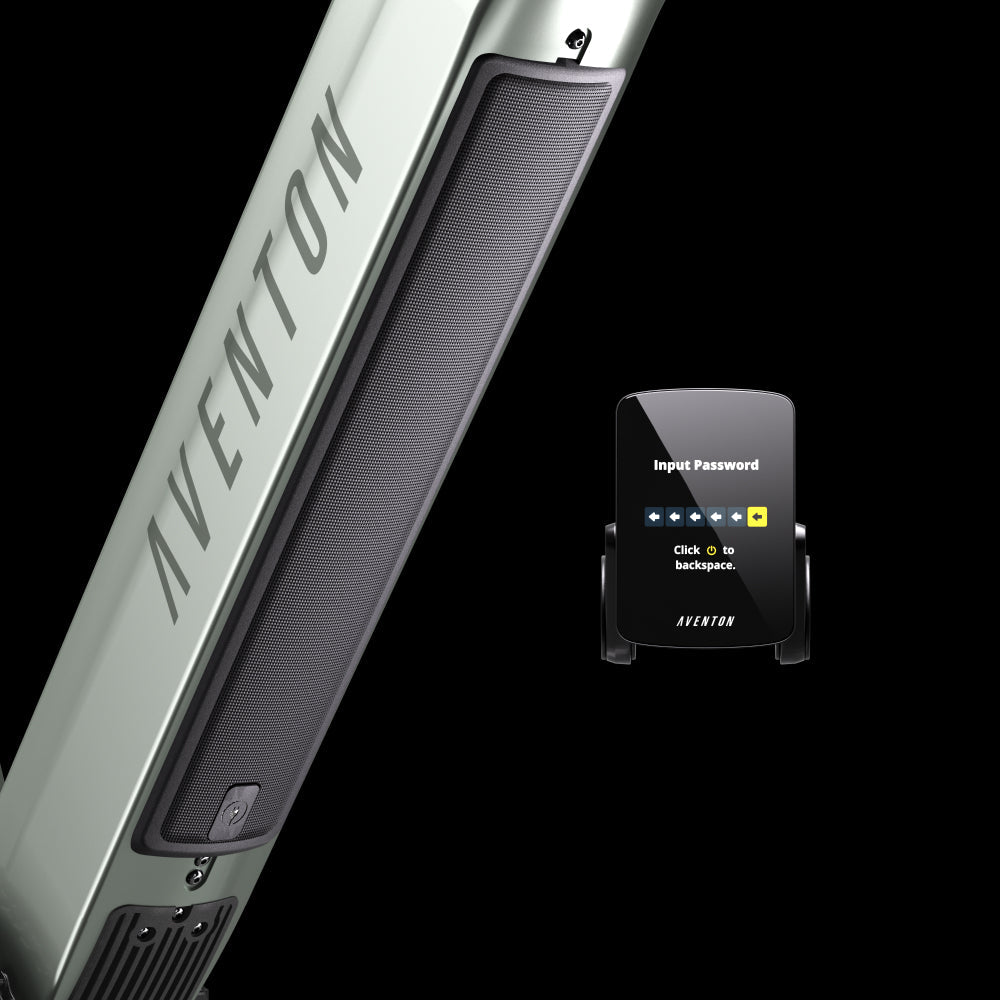

Startup Password and Keyless Battery

Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.

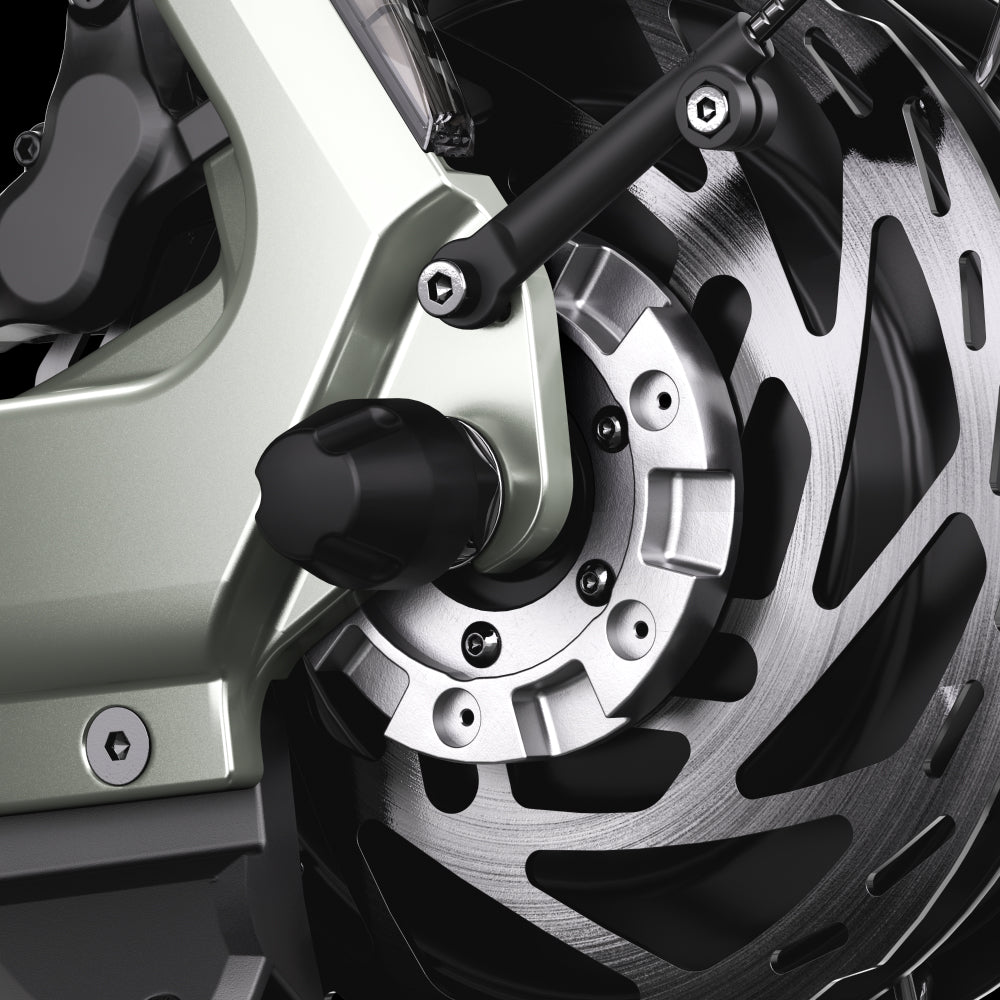

Electronic Rear Wheel Lock

Easily activate a locking mechanism that restricts the rear wheel from rotating. This adds a layer of security when leaving your bike unattended.

Suspension Seatpost

The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.

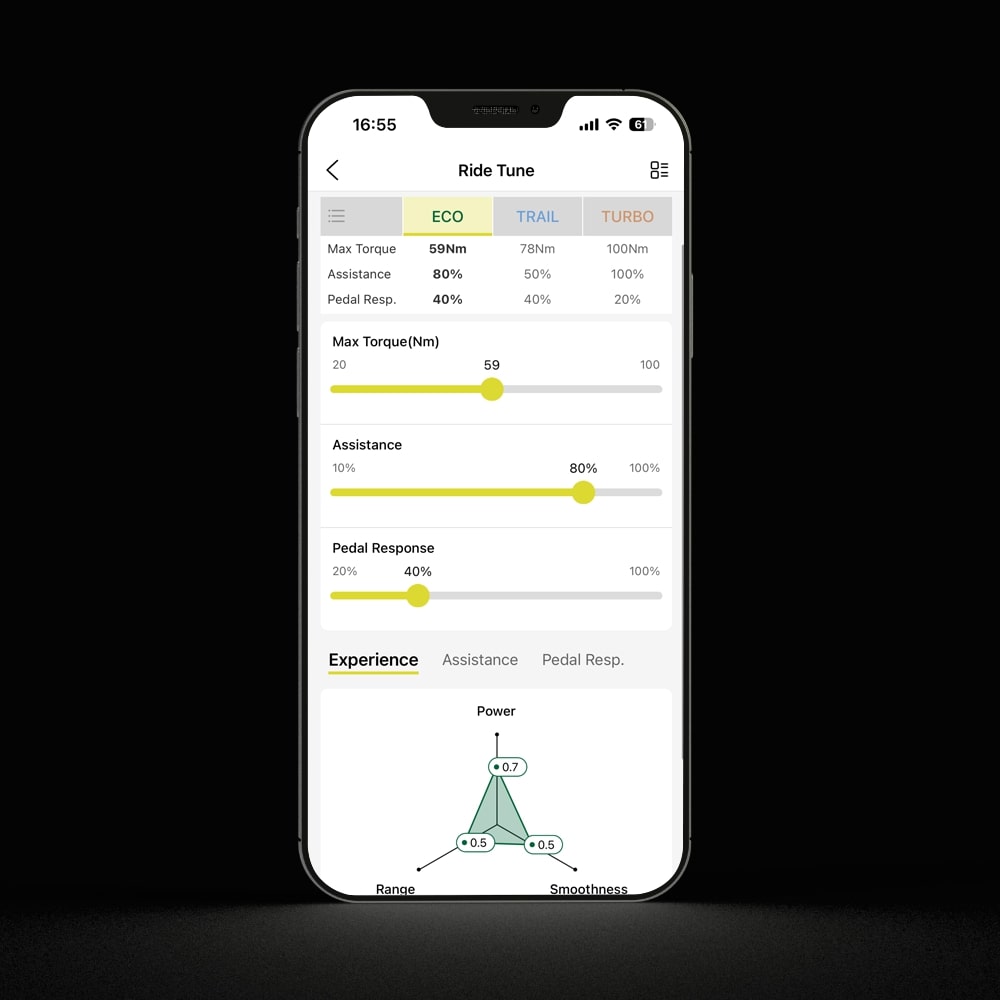

Ride Tune

Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and realize the full potential of your Level 3.

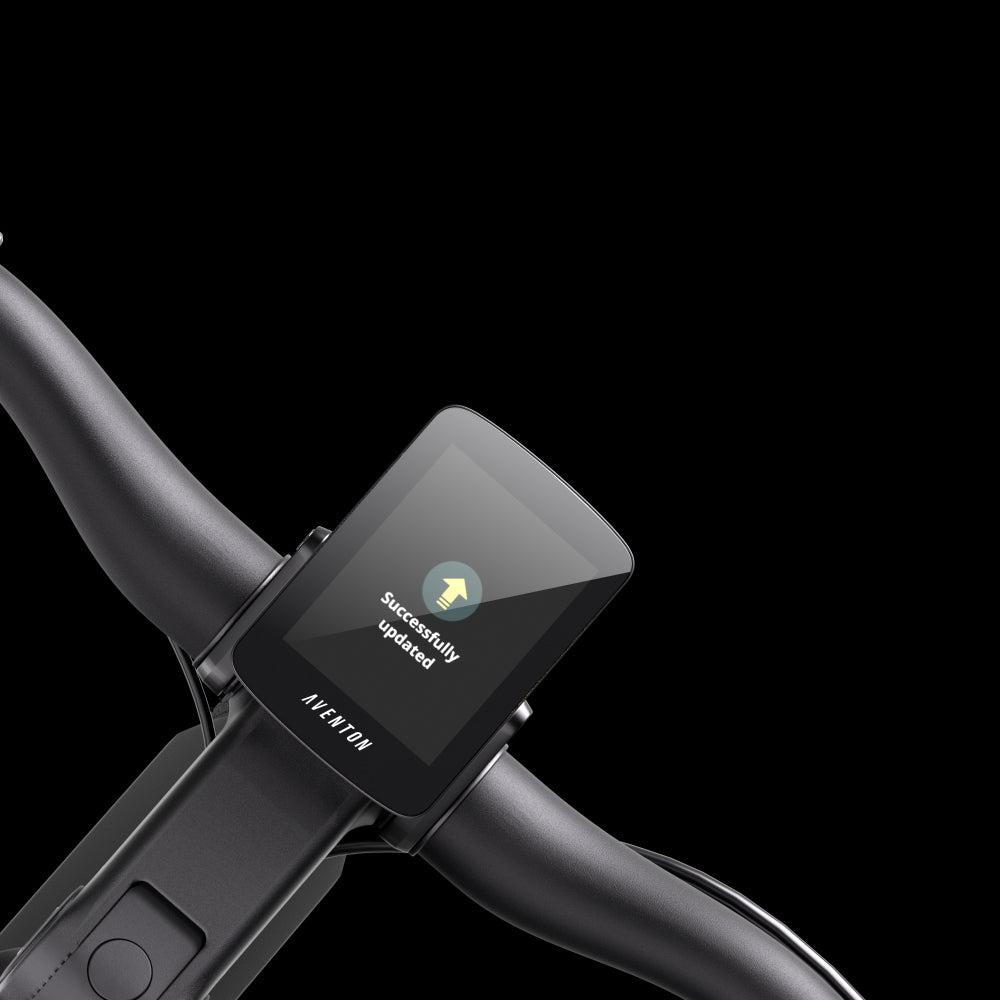

Over the Air Updates

Stay in the know while on the go. Enjoy optimal performance with intelligent over-the-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.

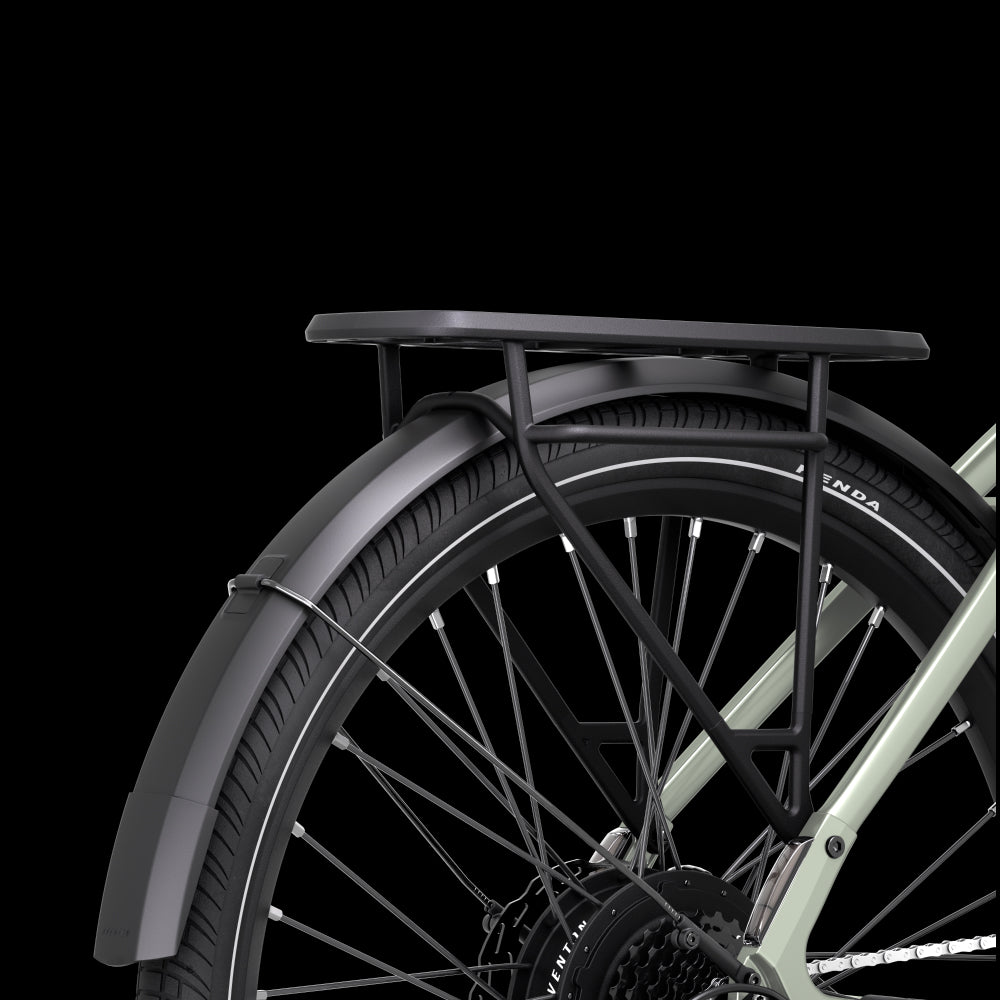

Rack and Fenders

Pre-installed fenders will protect you from the elements, rain or shine, while an attached rear rack means you can transport all of your essentials, whether you're heading out for a picnic or heading home from work!

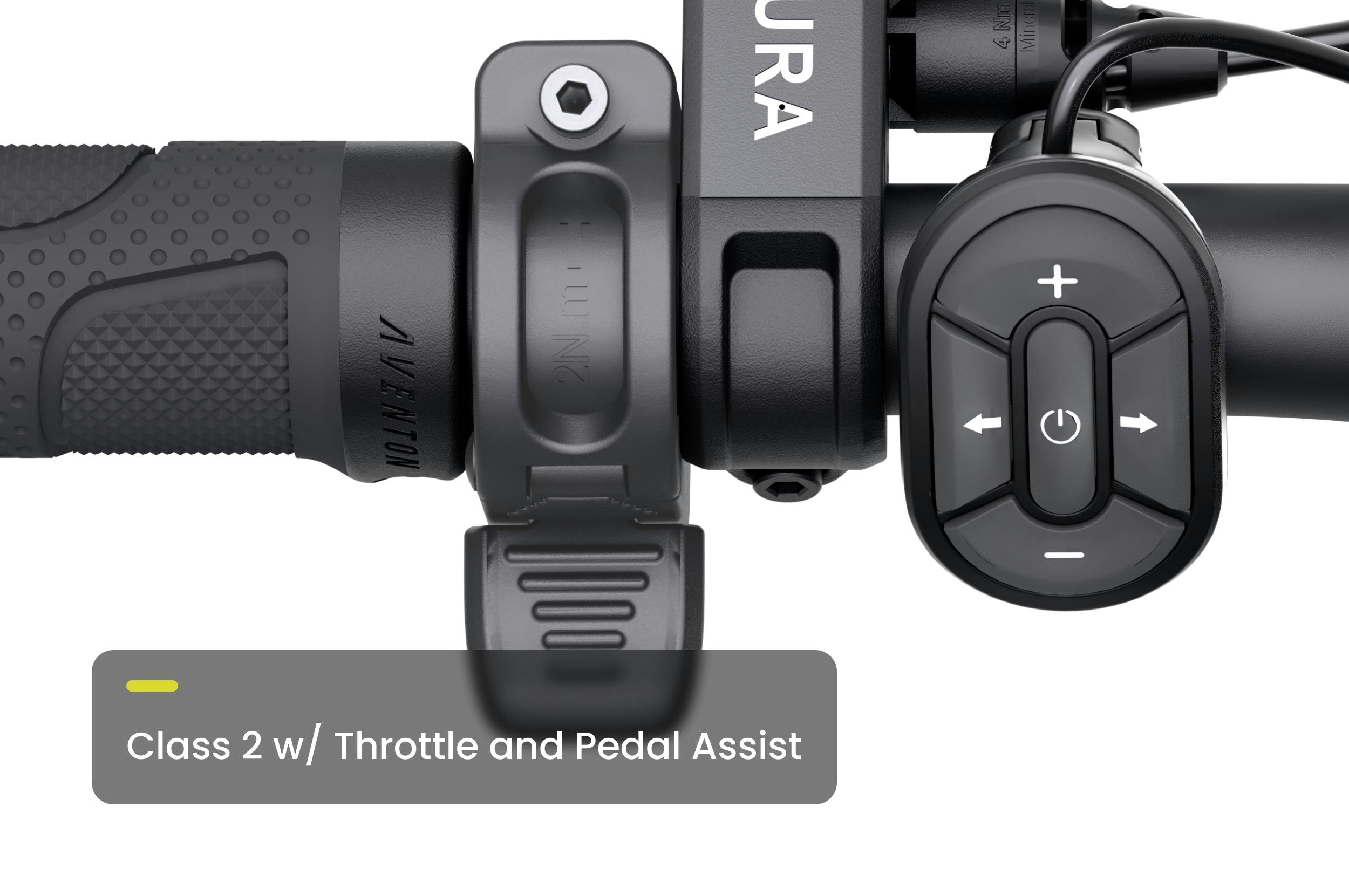

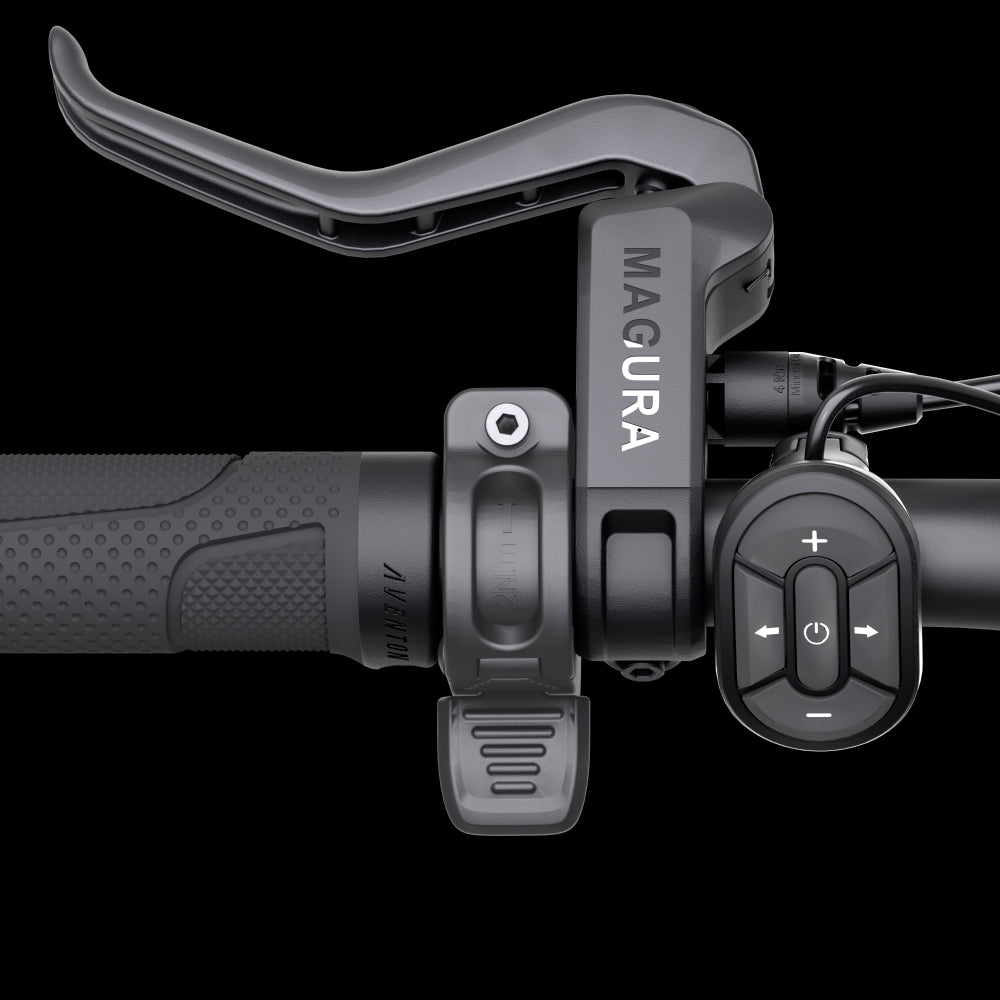

Pedal Assist and Throttle

Five levels of pedal assist mean you're in charge of how much or how little electric assist you get from your ebike, while a throttle will propel you at speeds up to 32 KM/H, keeping you moving when pedaling is just an afterthought!
